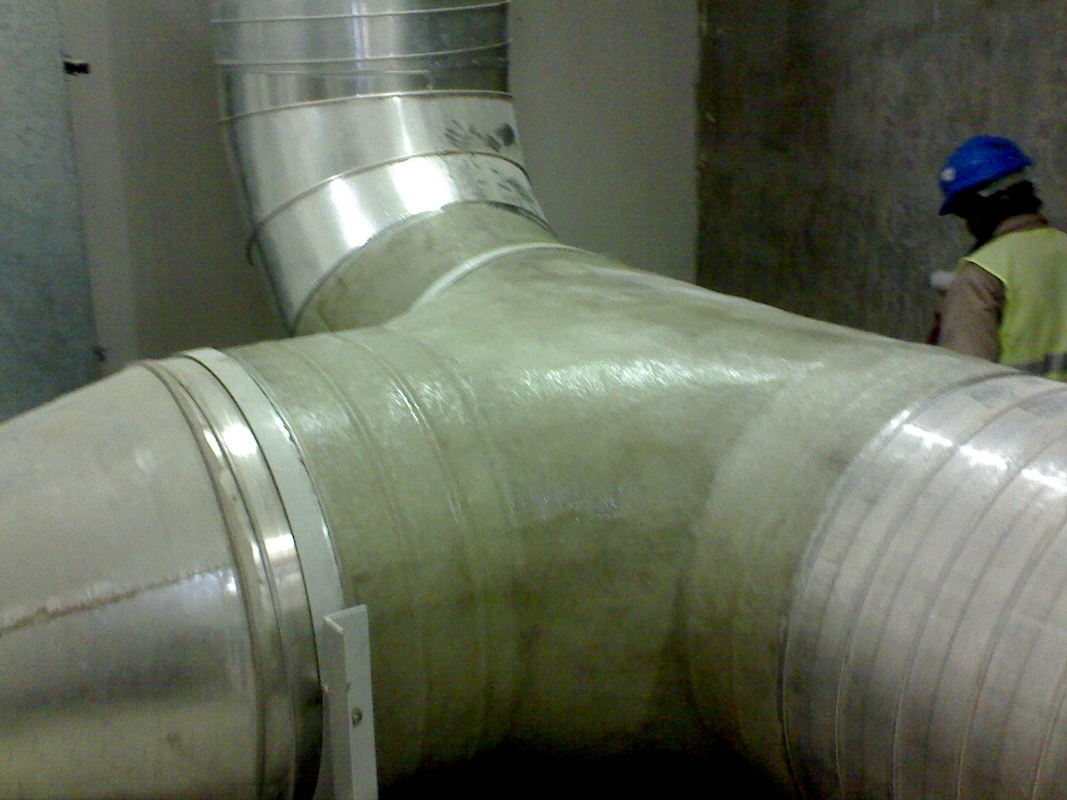

GRP / GRE Pipe Systems

High-Performance GRP & GRE Composite Pipe Systems

Glass Reinforced Plastic (GRP) and Glass Reinforced Epoxy (GRE) pipe systems are advanced composite piping solutions engineered for long-term performance in demanding environments. Manufactured using the Helical Filament Winding Method, these pipes deliver exceptional mechanical strength, superior corrosion resistance, and high hydraulic efficiency.

GRP/GRE pipes are designed to convey a wide range of fluids, including potable water, chemical solutions, seawater, and aggressive wastewater. Compared to traditional ductile iron, carbon steel, or concrete lines, these composite piping systems provide superior longevity, zero scaling, lower pumping head loss, and minimal lifecycle maintenance.

Hydraulic & Physical Superiority

Exceptional Hydraulics: Hazen-Williams C-value of 150–160 (vs. 120–130 for steel), cutting friction loss and pumping energy.
High Strength-to-Weight Ratio: Specific strength outperforms ductile iron, structural steel, HDPE, and PVC.
Low Thermal Conductivity: Minimizes process heat loss, often eliminating external insulation.

Operational Reliability

Fatigue & Surge Resistance: Handles cyclic pressure spikes and water hammer without wall delamination.
Corrosion & Soil Immunity: 100% immune to biological corrosion, H₂S gas, and aggressive saline soils.
No Cathodic Protection: Eliminates continuous electrical monitoring and sacrificial anode replacement.

Manufacturing Process: Helical Filament Winding

The helical filament winding method utilizes computerized fiber cross-winding around a precision steel mandrel, delivering isotropic reinforcement and balanced axial-to-hoop tensile capabilities:

1. Mandrel Preparation

The cylindrical steel mandrel is cleaned, precision polished, and wrapped with an release film to ensure a smooth interior bore and clean extraction.

2. Liner Preparation & Curing

An initial resin barrier is applied, followed by multiple layers of chemical-resistant resin with C-glass surface veil and chopped strand mat, then cured.

3. Structural Helical Filament Winding

Continuous strands of closely spaced glass fibers are computer-wound at calibrated angles through a resin bath directly onto the cured liner.

4. Curing Stage

The wound pipe on the mandrel undergoes controlled curing for 1 to 2 hours, adjusted according to atmospheric parameters for complete polymerization.

5. Mandrel Extraction

Following hardness verification with a Barcol hardness tester, the cured composite barrel is demolded via an automated hydraulic extractor.

6. Outer Coating & End Preparation

A final UV-stabilized protective topcoat is applied. Ends are machined, calibrated for double-bell coupler or socket-and-spigot joints, and routed to hydrostatic testing.

Engineering Specifications

Piping systems are engineered according to AWWA C950, ASTM D3517, and ASTM D3754 standards, available in broad pressure and stiffness ratings:

Parameter	Design Range & Standards
Available Diameters (DN)	Standard: 100 mm to 2,600 mm (Custom engineered up to 3,000 mm / 3,200 mm upon request).
Standard Pipe Lengths	3 m, 5 m, 6 m, and 12 m sections (custom lengths supplied to minimize field jointing).
Nominal Pressure Classes (PN)	PN 0.5 (Gravity lines), PN 3, PN 6, PN 9, PN 10, PN 12, PN 15, PN 20, PN 25, PN 30, and PN 35 bar.
Nominal Stiffness Classes (SN)	SN 1,250, SN 2,500, SN 5,000, and SN 10,000 N/m² (Tangential stiffness STIS EI/D tailored to burial depths and soil loads).
Jointing Configurations	Double-bell coupling with integrated elastomeric REKA sealing gaskets, lock-joint restrained joints, or flanged connections.
Resin Systems	Isophthalic Polyester (GRP) for general infrastructure / Vinyl Ester & Epoxy (GRE) for corrosive chemicals, hydrocarbons, and elevated temperatures.

Field Applications

Potable water transmission mains, distribution networks, and agricultural irrigation lines.
Gravity and pressurized sewer systems, storm drainage, and industrial effluent disposal.
High-pressure underground dedicated firewater loops and hydrants.

GRE piping for onshore and offshore oil & gas, flowlines, produced water, and crude gathering.
Desalination seawater intake, brine discharge outfalls, and cooling water circuits.
Industrial chemical process lines, acid handling, and thermal power plant piping.

GRP / GRE Piping FAQs

Glass Reinforced Epoxy (GRE) is chosen for high-pressure operations (up to 35+ bar), elevated temperatures (up to 95°C–110°C), and harsh hydrocarbon or corrosive solvent environments common in offshore, oil and gas, and chemical refineries. GRP (using polyester/vinyl ester) is optimal for municipal water, sewage, and standard chemical transfer.

The standard system is a double-bell GRP coupler with dual elastomeric EPDM/NBR lip-seals, which allows angular deflection and incorporates a central test port for on-site joint hydrotesting. We also engineer restrained key joints, adhesive-bonded socket and spigot joints, and full-face flanged connections.

With an exceptional Hazen-Williams flow coefficient (C = 150–160) and surface roughness of under 0.005 mm, friction losses remain minimal. Over decades of operation, internal scaling and encrustation never occur, resulting in permanent energy savings and smaller required pump sizing.

Nominal stiffness (SN 1250, 2500, 5000, 10000 N/m²) is selected based on depth of cover, native trench soil modulus, groundwater table height, and surface wheel loading (such as heavy highway vehicle traffic), ensuring deflection stays well within standard limits.
