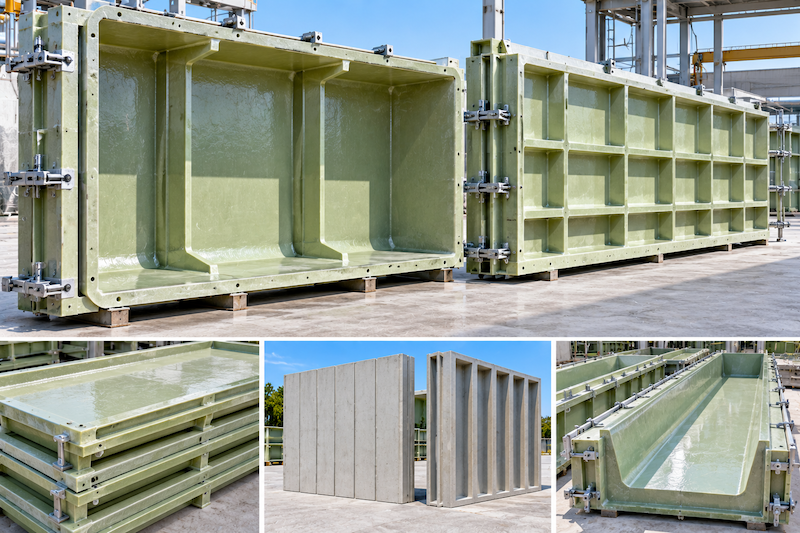

GRP (Glass Reinforced Plastic) Shutter Molds are specially designed tools used for casting and shaping concrete shutters with uncompromised precision and repeatable consistency. Our molds are engineered to deliver exceptional accuracy, durability, and production efficiency for modern civil construction and industrial precast applications.
Manufactured using high-quality composite matrices, these molds offer a mirror-smooth casting finish, excellent dimensional stability, and an exceptionally long service life. By accelerating stripping cycles, eliminating concrete surface defects, and requiring minimal maintenance, they help boost casting yard productivity while cutting overall project time and labor costs.
We engineer and fabricate modular and monobloc GRP formwork tailored to specific structural elements and architectural concrete designs:
Engineered for casting large precast concrete wall sections, sandwich facade panels, and boundary wall dividers with uniform thickness.
High-rigidity split molds for round, rectangular, or fluted concrete columns, lintels, and pre-stressed load-bearing beams.
Heavy-duty U-drain, trench, and culvert casting molds delivering exact hydraulic slope angles and internal smoothness.
Formliners and relief molds engineered with custom textures, flutes, geometric patterns, and bas-relief finishes for aesthetic concrete.
Engineered precisely to contractor blueprints for complex double-curved geometries, dome sections, parapets, bridge piers, and non-standard precast units.
GRP shutter molds provide consistent dimensional control and durability across precast operations and on-site civil works:
Every mold is reinforced with integral composite ribs or secondary steel backing frames to prevent deflection under wet concrete hydrostatic pressure:
| Component | Design Range & Standards |
|---|---|
| Gelcoat / Contact Face | High-hardness tooling gelcoat (Barcol hardness ≥ 45) providing scratch resistance and thousands of clean demolding releases. |
| Composite Laminate | Vinyl ester skin coat backed by alternating layers of heavy-weight chopped strand mat and woven roving for structural stability. |
| Substructure Reinforcement | Integrated GRP top-hat ribs or embedded structural steel hollow section (SHS) frames to ensure zero flex under vibration. |
| Jointing & Clamping | Precision composite bolt flanges fitted with quick-release wedge clamps or high-tensile alignment pins. |
| Custom Modifications | Provisions for lifting hooks, external pneumatic vibrator mounting brackets, and chamfer magnetic strips. |
With proper handling, appropriate release agents, and regular washing, our tooling-grade GRP molds achieve hundreds of repetitive concrete pours. Unlike timber formwork that warps after 5–10 pours or steel that pits from rust, GRP maintains dimensional accuracy and surface smoothness indefinitely.
GRP molds are significantly lighter than steel, enabling easier crane and manual manipulation in casting yards. They do not rust when exposed to wash water, do not transfer thermal extremes into the curing concrete, and make complex curves and relief textures far more economical to manufacture than CNC-machined steel.
Yes. Our molds are designed with heavy structural composite ribs or integrated steel backing trusses specifically engineered to disperse the energy of concrete poker immersion and high-frequency clamp-on vibrators without cracking or loosening joints.
Unlike steel or timber, minor surface scratches on a GRP mold can be quickly filled on site with color-matched tooling gelcoat, sanded with fine abrasive paper, and buffed to a high gloss, restoring the mold to factory-new condition without production disruption.
